solar temperature sensor

8MM Temperature Sensor Stainless Steel Probe Water Tank Shell Solar Parts

0-5V/0-10V/4-20MA/RS485 Solar irradiance sensor transmitter meteorological outdoor solar radiation detector sensor

0-5V/0-10V/4-20MA/RS485 Solar irradiance sensor transmitter meteorological outdoor solar radiation detector sensor

Analog output

• Power supply range : 10V~30V DC (0-10V output supply voltage needs 24VDC)

• Output : 4-20mA, 0-5V, 0-10V

• Maximum power consumption

• Current output: 0.08W

• Voltage output: 0.08W

• Working humidity: 0%~100%RH

• Working temperature :-40 C ~ 60 C

• Spectral range :0.3~3μm

• Measuring range: 0~1800W/m2

• Resolution :1W/m2

• Response time <=10S

• Nonlinear <+-2%

• Annual stability <+-2%

• Cosine response <+-10%

• Line length 60cm

Wiring

Calculation formula

Current type signal output calculation method

For example, the range is 0~1800W/m2, 4~20mA output. When the output signal is 12mA, the current solar radiation value is calculated.

The solar radiation range spans 1800 W/m2 and is expressed by a 16 mA current signal, 1800 W/m2/16 mA = 112.5 W/m2. /mA, that is, current 1mA represents solar radiation change 112.5W/m2, measured value 12mA-4mA=8mA, 8mA*112.5W/

M2/mA = 900W/m2, the current solar radiation value is 900W/m2.

Voltage type signal output conversion calculation

For example, the range is 0~1800W/m2, 0-10V output. When the output signal is 5V, the current solar radiation value is calculated. sun

The span of the radiation range is 1800W/m2, expressed by a 10V voltage signal, 1800W/m2/10V=180W/m2/V, that is, electricity

Pressure 1V represents solar radiation change 180W/m2, measured value 5V-0V=5V, 5V*180W/m2/V=900W/m2, current sun

The radiation value is 900 W/m2.

RS485 Output

• Power supply range :10V~30V DC

• Output : RS 485 (standard Modbus-RTU protocol)

• Power consumption :0.08W

• Working humidity: 0%~100%RH

• Working temperature:  -40 C ~ 60 C

• Spectral range:  0.3~3μm

• Measuring range : 0~1800W/m2

• Resolution :1W/m2

• Response time :≤ 10S

• Nonlinear: <±2%

• Annual stability :≤ ± 2%

• Cosine response: ≤ ± 10%

• Line length : 60cm

Wiring

Installation method

1. After the installation is complete, remove the protective cover

2. Make sure the bracket is installed and the radiation sensor is parallel to the ground.

3. Secure the sensor to the mounting bracket by using a screw through the mounting hole on the sensor.

4. Please note that the dust cover should not be damaged during the installation process, so as not to affect the measurement accuracy.

Product size

provide config tool

Temperature sensor cable works with MC ML series MPPT solar charge controller

Anpviz Tuya Smart Wifi Temperature Humidity Sensor Home LCD Display Hygrometer Thermometer Detect Support Alexa Google Assistant

Note:The package we send to you is not include battery!This product is suitable for AA batteries.

Accurate Data

The sensor can monitor temperature and humidity in real time,and you can check the subtle changes in temperature and humidity on the LCD display and APP.

Temperature/Humidity High/Low Reminder

You can set the temperature and humidity thresholds.When the indoor temperature and humidity are higher/lower than this value,the sensor will send you a push message to remind you through the APP.

Smart Linkage Function

This Sensor could work with Tuya Smart,Smart life,Amazon Alexa and Google Assistant.You can let your smart home perform automated processes through them.

Work with Amazon Alexa and Google Assistant

After the sensor is connected with Amazon Alexa,Google Assistant, you can know the current indoor temperature and humidity value through voice.

Suits for Many Occasions,Easy to Install

Suitable for Multiple application places,Could meet all your installation environment needs.

Customs Clearance : Buyers are responsible for Taxes & Duty.The tax is collected by your country customs,not collected by our store. Our store product’s price is not include tax and VAT.For some European Customers：If you buy over 150euro,you need to pay VAT for your local customs directly,not on AE platform.If you buy less than 150euro,AE will collect VAT.

Remote Fee : If the carrier confirm your address belongs to remote area--town & country, we will change other logistics channel for you. But if still identified as remote area, you need to pay $40 remote fee. Or you can give us another address that isn't a remote area. Thank you!

City & Zip Code Confirmation : If you offer us wrong city &zip code,we will send message to confirm with you on AE,please reply us promptly.To deliver the product to your more quickly,please provide us the correct city name and Zip code.

Logistics Channel Arrangement : In our store we will offer DHL free shipping for some product.But to deliver more quickly to you,we actually will select most best logistics channel for you.Thanks for your understand.

Question & Answer：

Q:Why Choose our store to buy product?

A:1.All products we sell are genuine products with guaranteed quality.

    2.Most of our product warranty period is 14 months since your purchase date.And we have professional after-sale teem help you solve problem.

   3.We have oversea warehouse such as RU,DE,US,that could deliver quickly and help you save money.

   4.Our brand has been established for 10 years,credibility is very high.It’s the best choice for your purchase.

Q:What is the return policy?How do we return the goods?

A:The Return goods, including accessories, must is unused,and has no influence to sell again .Buyers need to bear return freight,we don’t bear.If you want to return product,please contact us firstly.

（In our store,All content of this link is known to buyer by default!）

google home/Temperature sensor/temperature sensor/tuya/home assistant/Thermometer/tuya smart home/alexa/Home/thermometer/tuya thermometer/home assistant

Remote temperature sensor EP Solar Tracer Solar Charge Controller RTS300R47K3.81A 1210A 2210A 3210A 4210A 1215BN 2215BN 3215BN

30783

Top Selling of Solar Charge Controller



EPever Remote Solar Controller Temperature Sensor TS-R For EPever EPsolar Tracear AN BN CN Series ViewStar-AU TRIRON XTRA Series

EPever Remote Solar Controller Temperature Sensor TS-R For EPever EPsolar Tracear AN BN CN Series ViewStar-AU TRIRON XTRA Series

Note：
Friends, for you to purchase Easy to buy,

we have set up some matching links for you,hope you like！

Accessories (optional):

MESTEK Digital infrared Thermometer IR laser Temperature Sensor Gun LCD Screen Humidity Meter Pyrometer digital thermometer

Specification:

400:-50~400C
600:-50~600C
800B:-50~800C,with temperature probe
800C:-50~800C,,with temperature probe ,ambient temperature humidity,Dew point,Mildew measurement

D:S : 12:1
Emissivity:0.1~100 ajustable
Response spectrum :8~14um
Temperature sensitive zone Laser :<1mW/630-670nm level 2
Response time:<0.5s
Automatic shutdown :30 seconds

400/600:Only one laser point
800B/800C:12 laser points

Note:this product is not suitable for measuring temperature of body surface,Forehead,Baby!(battery is not included

High precision infrared thermometer

Function:

The emissivity is adjustable,High and low temperature alarm,Data retention,Unit conversion,Multipoint measurement,Low power prompt,Automatic shutdown,Bright color screen,Temperature probe,USB charging fast,Speed measurement,Maximum,

Application range of thermometer

the surface temperature is determined by measuring the reflected energy of the object surface

Panel function for 800A/B and 800C

Imported metal sensor, precise measurement of sudden temperature difference is more sensitive

Measurement method of water temperature / oil temperature and other liquids

K-Type Temperature

12 Point laser positioning

laser lamp aiming and positioning fast locking measurement range

Non contact safety measurement required

Object distance ratio 12:1

Measuring distance and measuring target diameter ratio

High and Low temperature alarm

High precision sensor

anti interference/fast reception/higher stablity

HD LED display not afraid of night

Shell design is wear-resistant and drop-proof

C/F Unit conversion

Max(maximum)measurement

Sliip mode,energy saving and power saving

Low battery warning

0.1~1.0 emissivity adjustable

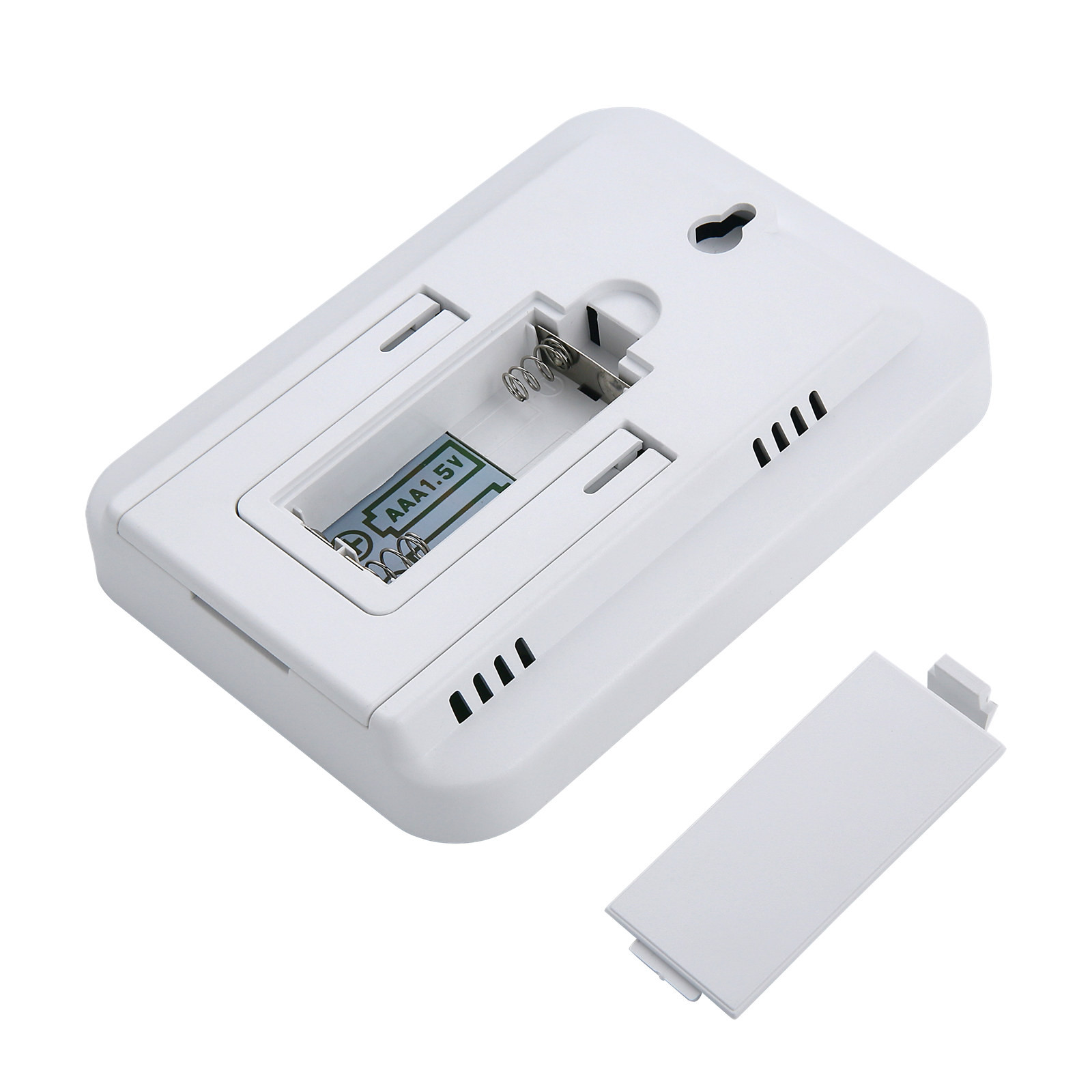

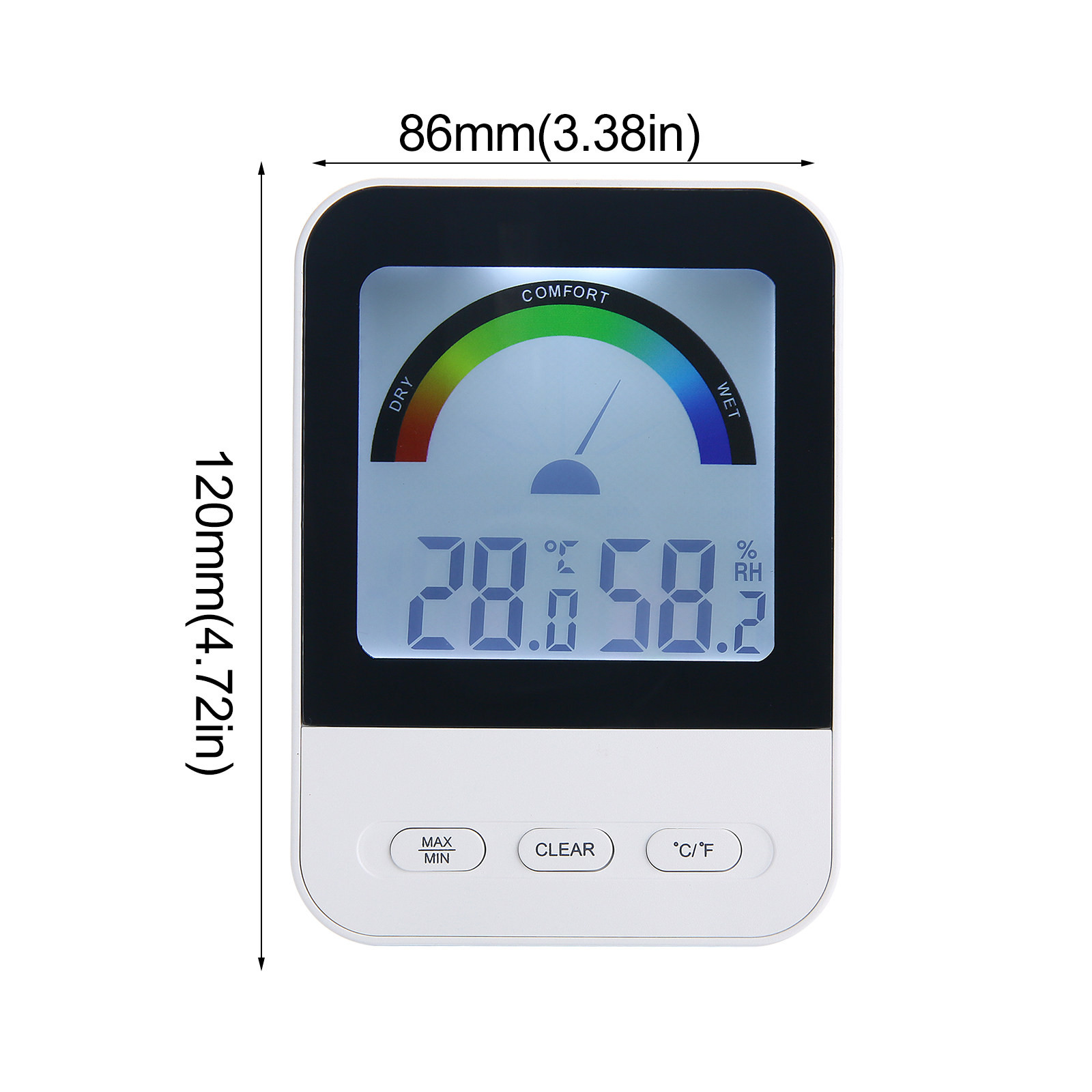

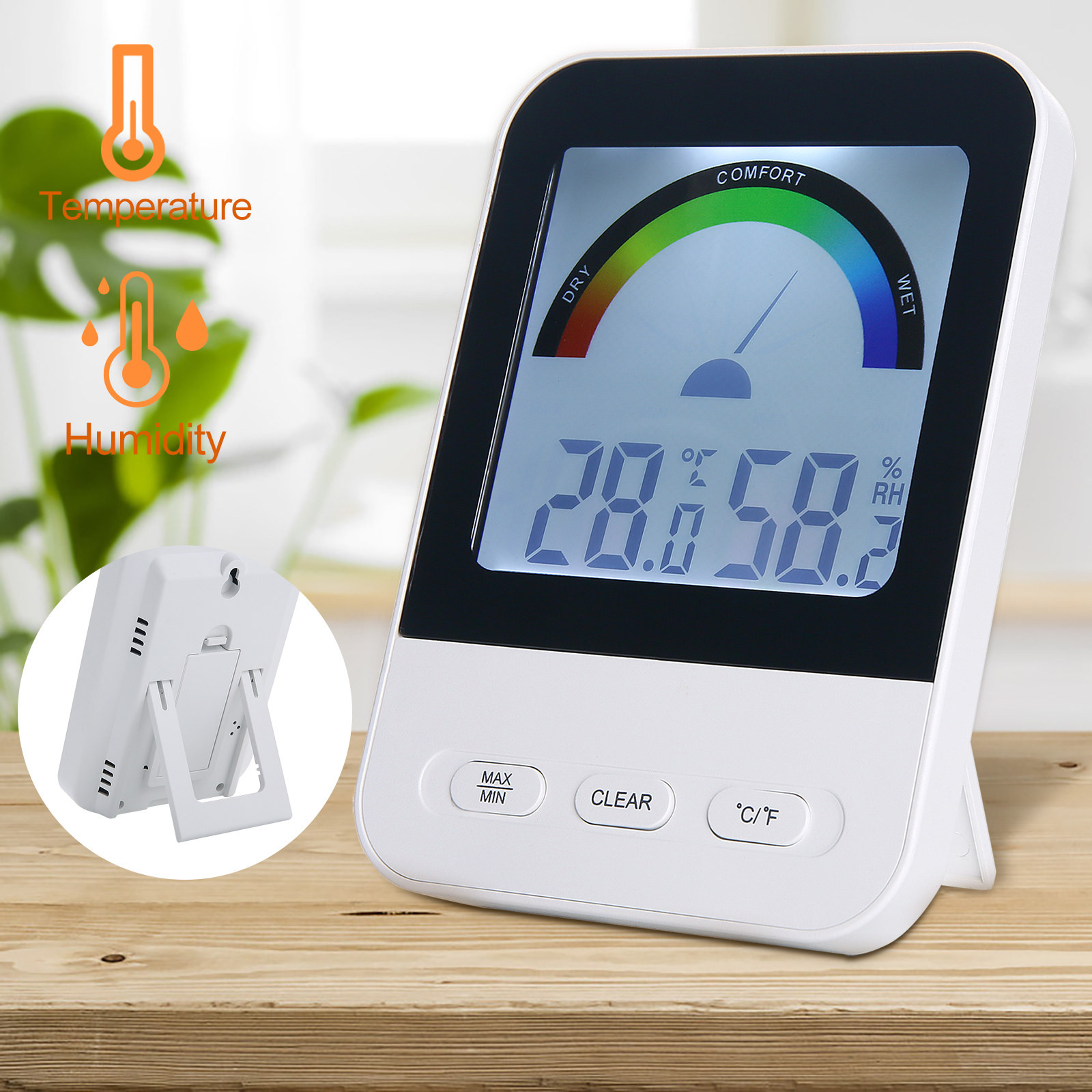

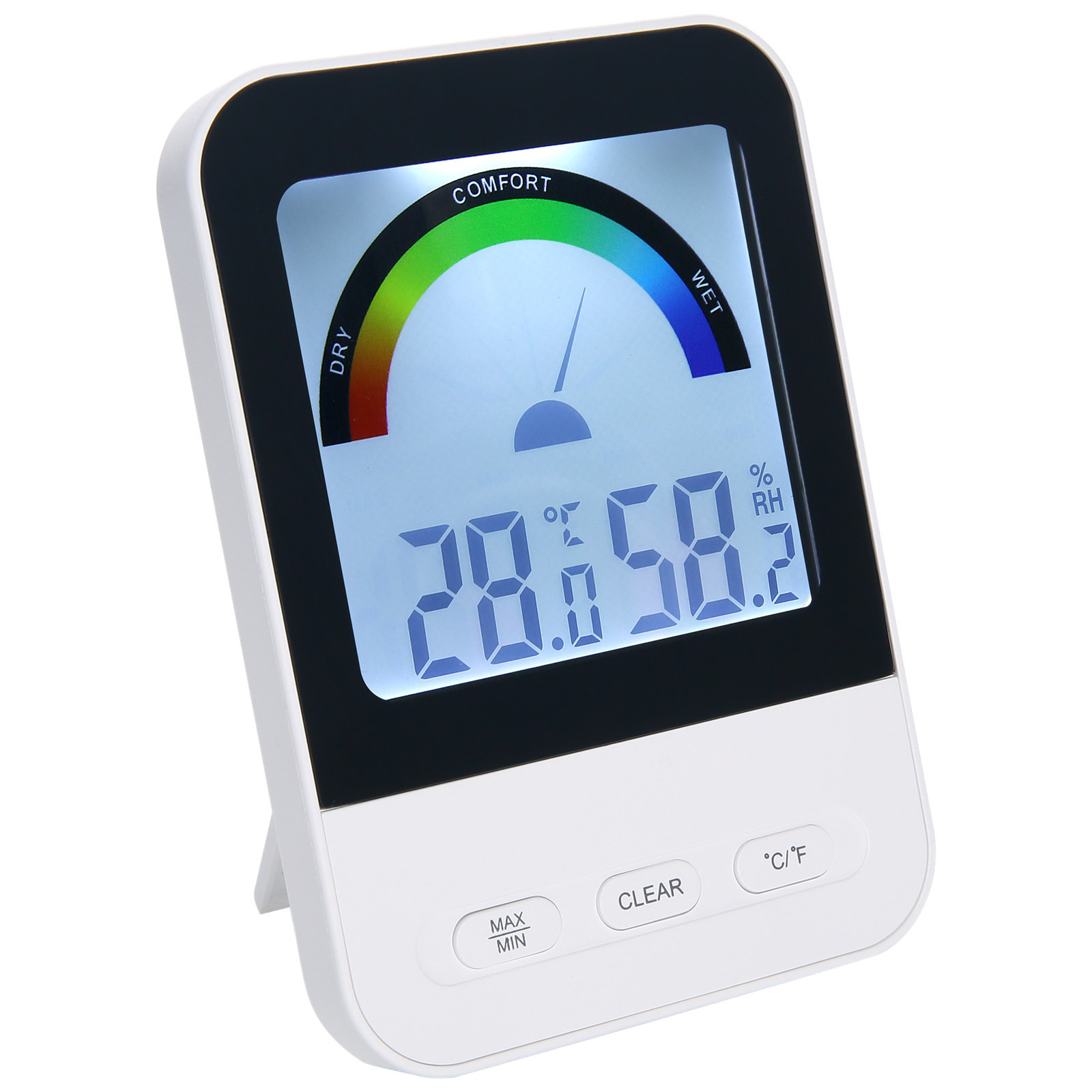

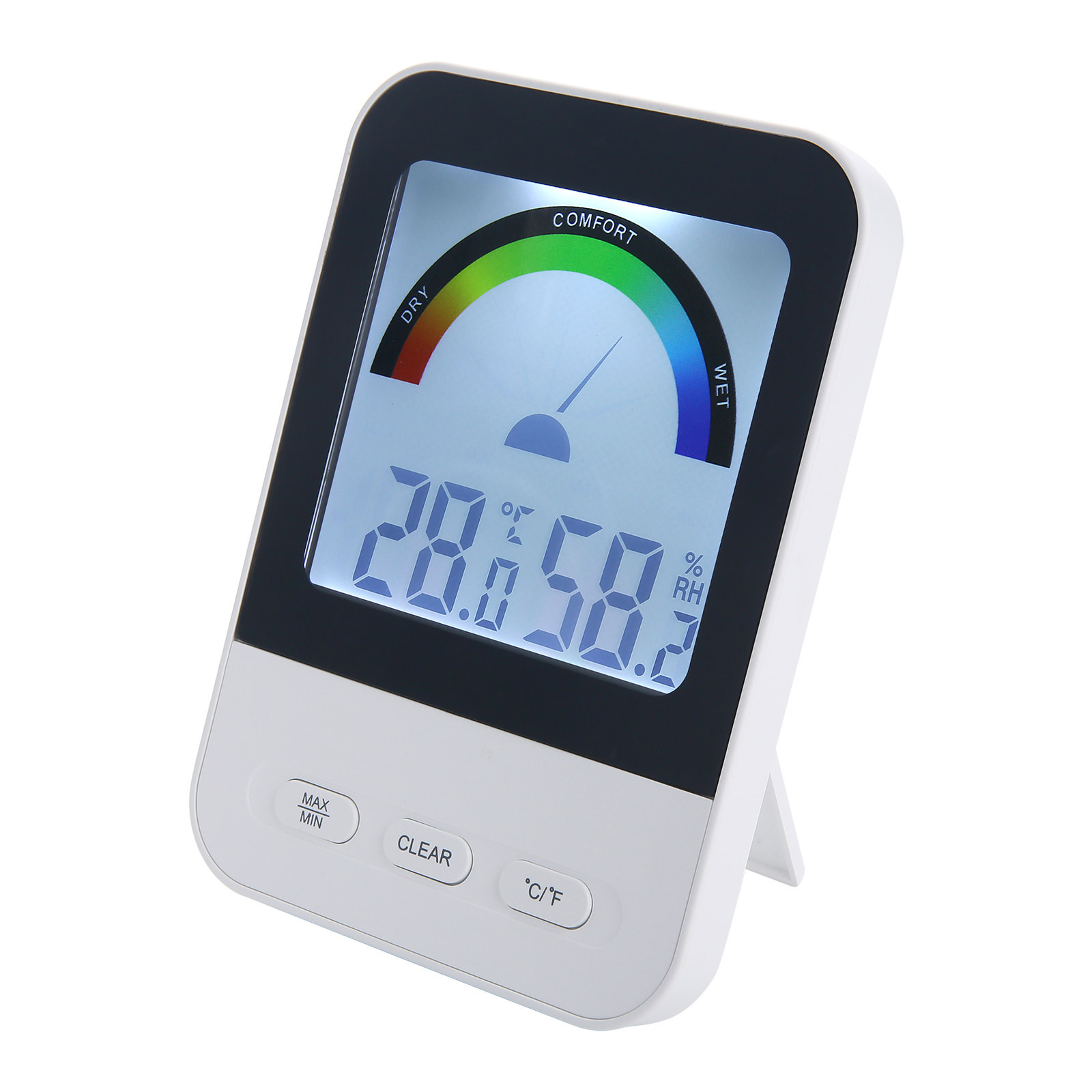

Chicken Coupe Heater Solar Digital Home Electronic Temperature And Humidity Meter Indoor Comfort Guidelines

Digital Home Electronic Temperature And Humidity Meter Indoor Comfort Guidelines

Description:

• Product Name: humidity meter

• Material: plastic

• Packaging : box

• The new temperature and hygrometer is a comfortable guide for dry humidity in the room. The precise measurement of 0.1 temperature and 0.1% humidity is achieved.

• Measuring temperature range: 0~50℃ (32℉ ~ 122℉)

• Measuring humidity range: 10%~99%

• Memory function: Automatically record the maximum/minimum temperature and humidity record data within 24 hours, press MAX/MIN to check the maximum/minimum temperature and humidity record.

• Temperature unit: ℃ or ℉ to switch.

• Weather indicators: dry, comfortable, wet.

• Temperature and humidity recording data can be manually cleared.

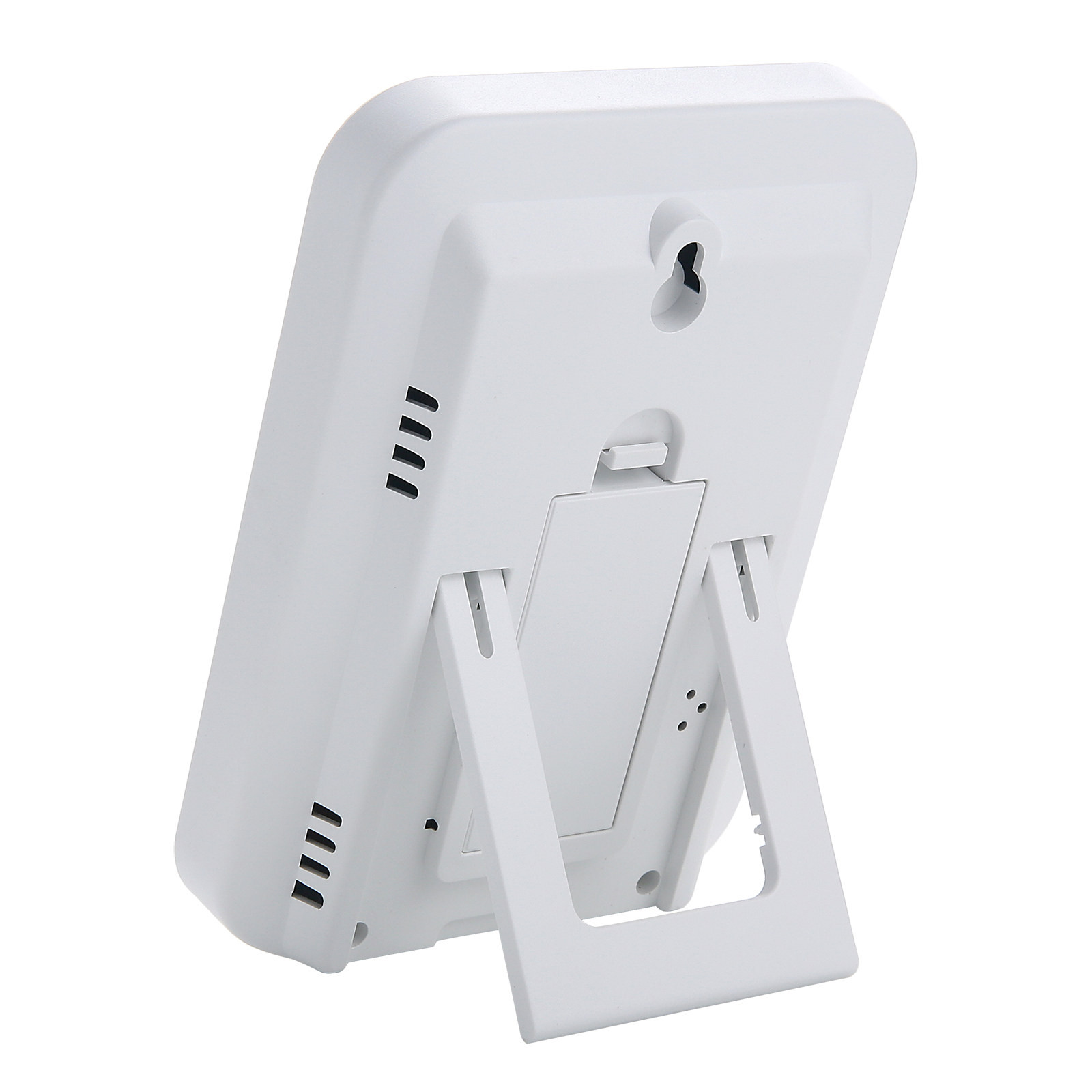

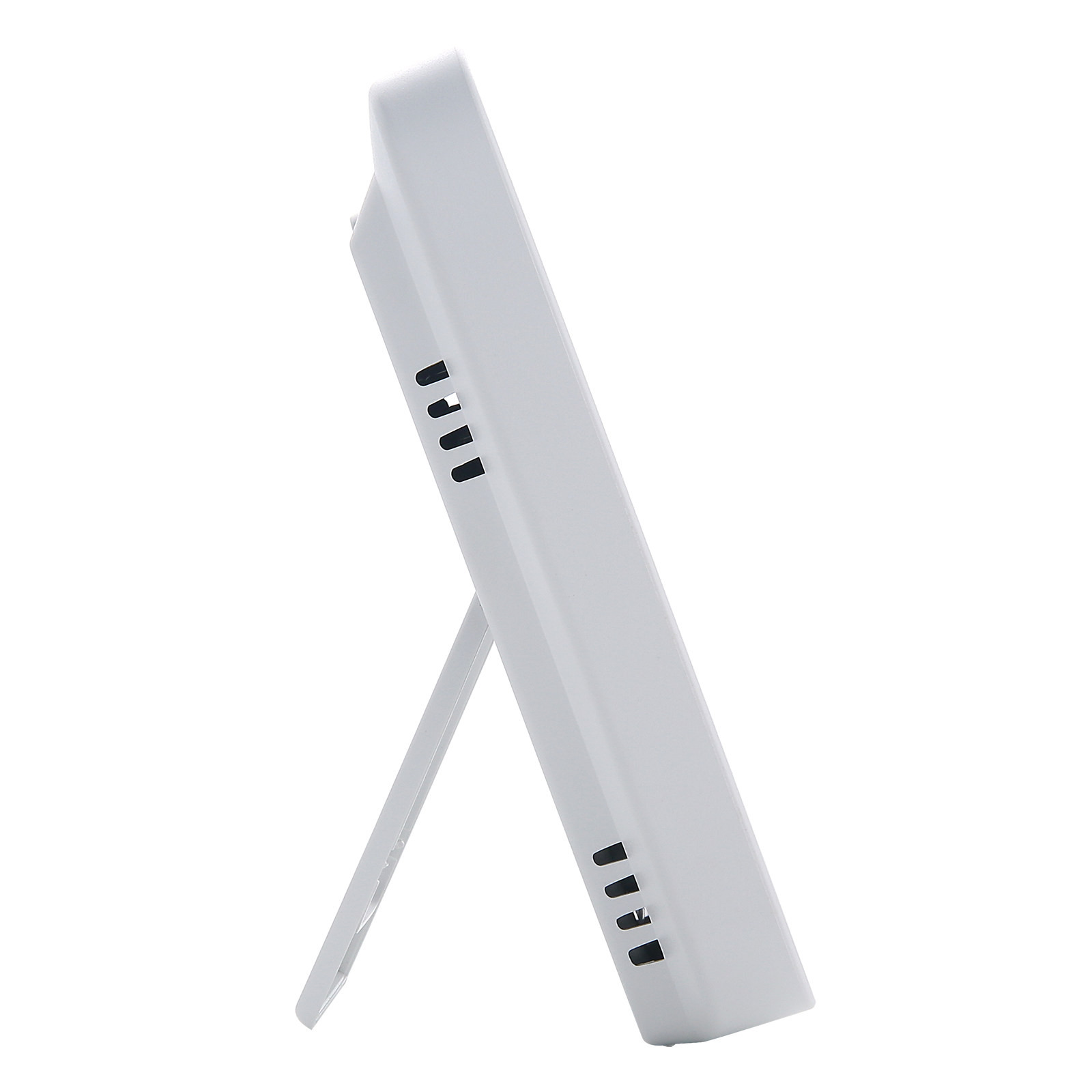

• With backlight and bracket, the product can stand on the table.

Notes:

• All dimensions are measured by hand, error is normal. All the pictures will have some color difference under different light and display. Please forgive me.

• Due to market changes and other factors, the factory may adjust its products. Color and packing method of accessories and outer packing, please refer to the actual situation.

Package includes:

• 1 x   humidity meter

• 1 x   instructions



Battery Temperature Sensor Use For Epever MPPT Solar Controller RTS300R47K3.81A Remote Temperature Sensor

8MM Temperature Sensor Stainless Steel Probe Water Tank Shell Solar Parts
